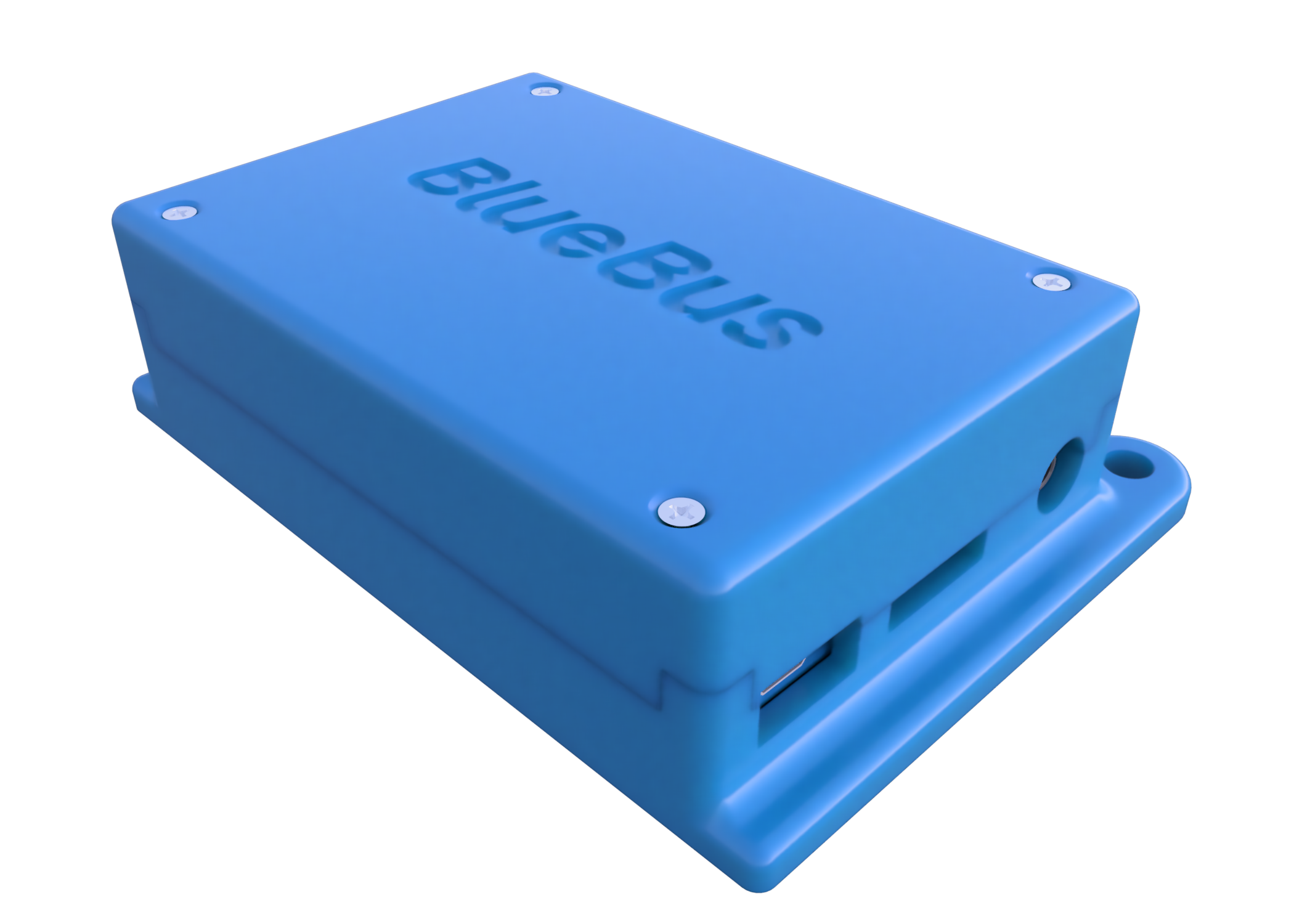

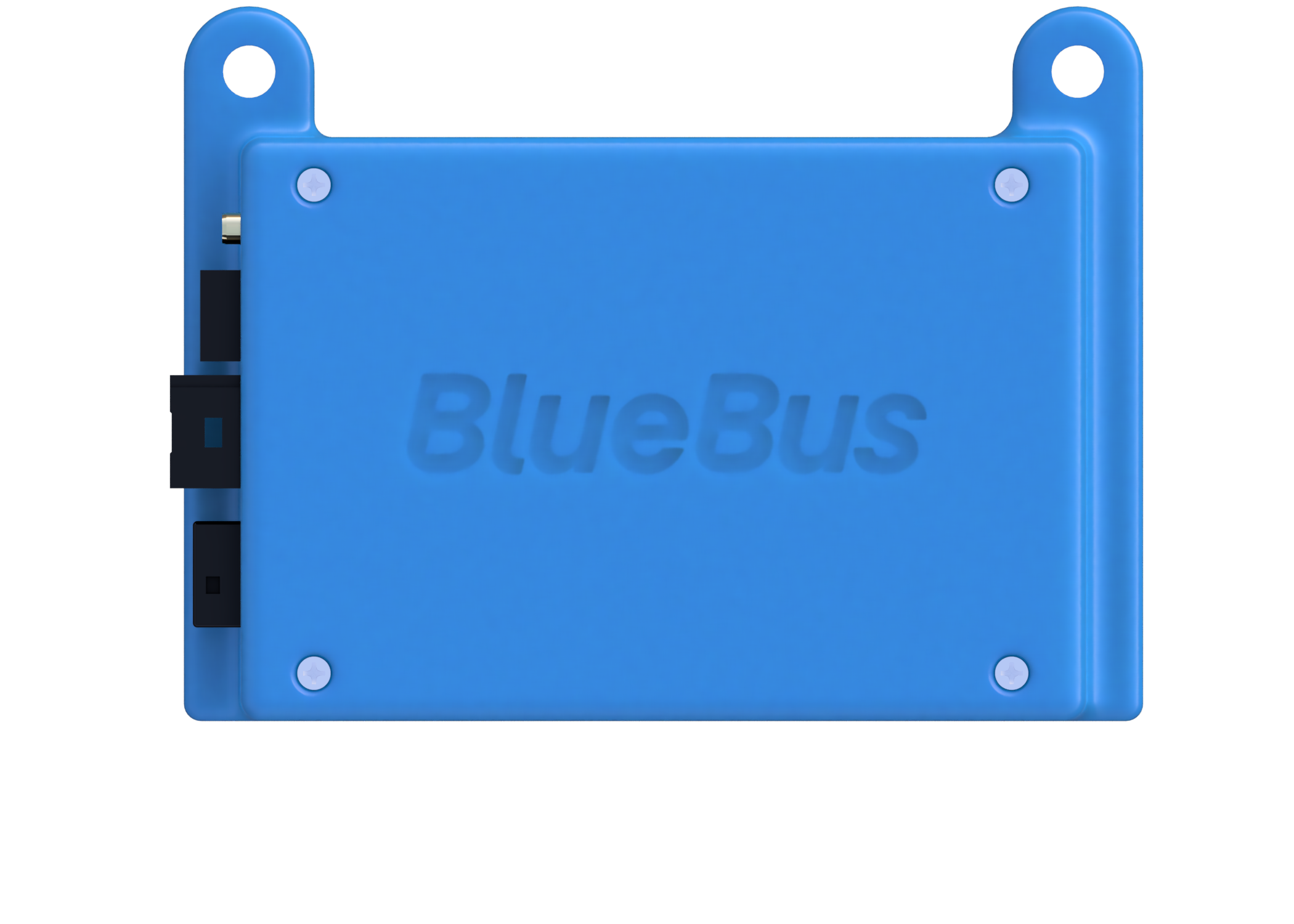

BlueBus Bluetooth Module - BMW E-Chassis Vehicles

The Ultimate Bluetooth solution for your car. An I-Bus enabled, fully integrated Bluetooth module for your BMW, Land Rover, or Mini.

Features:

• Full integration with the vehicle for an OE-like experience

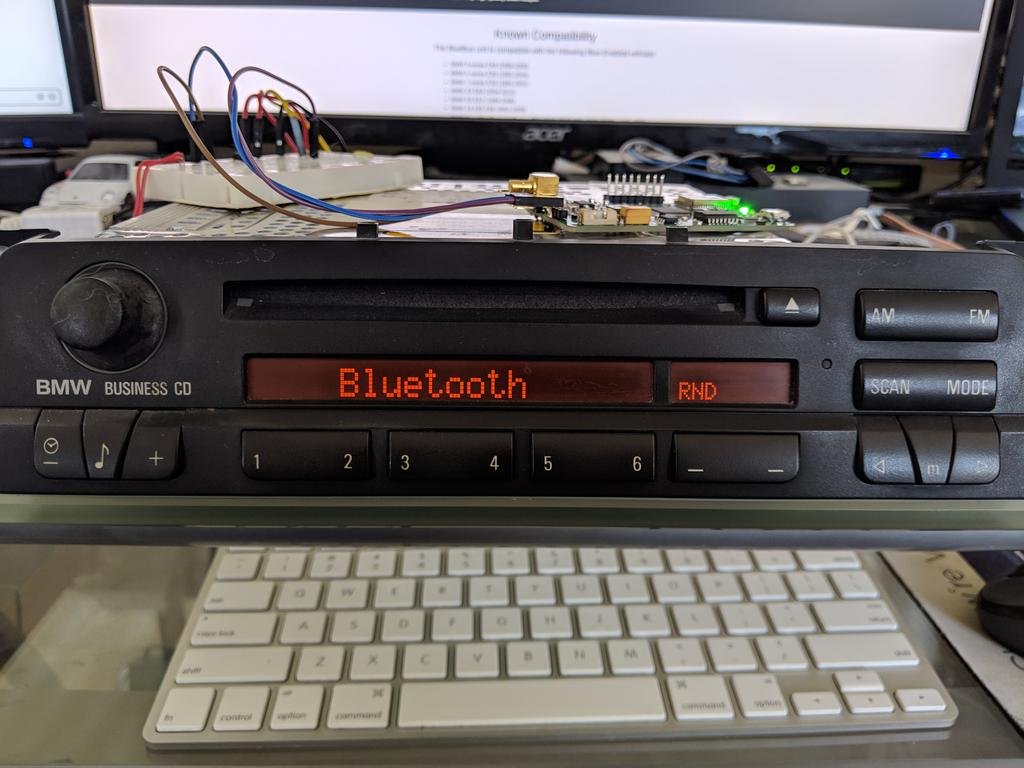

• Full Support for the Business CD and Navigation Systems

• Comfort Features, such as "one touch" blinkers, auto locking doors based on speed, and auto door unlocking based on key position *

• Emulation of the OE telephone so that calls can be handled irrespective of the radio mode or state

• Support for the OE BMW Microphone

• Caller ID display

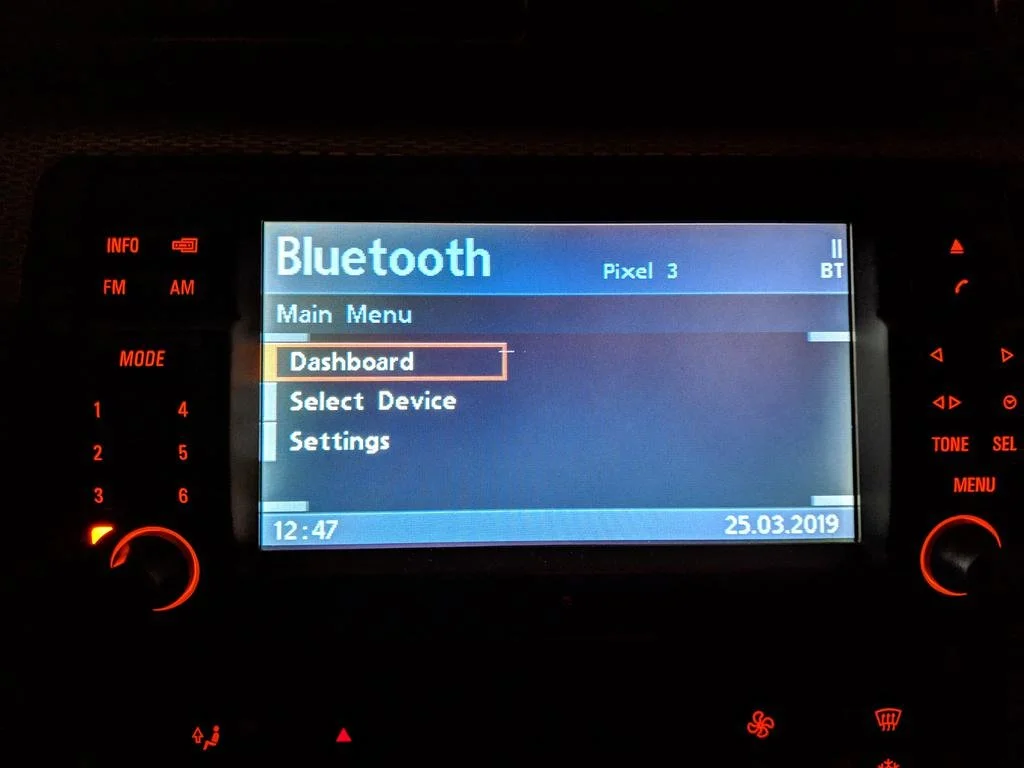

• Metadata display on all UIs

• Firmware Upgradable

• Compatible with the analog and digital (coax) DSP system

• Simple installation

• Fully open source, down to the hardware

• Extremely high quality audio output

* Not available on all vehicles

Tech Specs:

• Microchip BM83 Bluetooth module

• Support for A2DP, HFP, SPP, BLE and MAP Bluetooth protocols

• DIT4096 S/PDIF transceiver

• 2.1v RMS 113dB SNR Audio DAC (Texas Instruments PCM5122)

• FT231X USB to Serial Converter

• Field upgradable firmware

• Melexis TH3122.4 I-Bus transceiver with hardware collision detection/prevention

• 1MB EEPROM

• PAM8406 Amplifier for call handling

• OE Connectors sourced from the same company that BMW purchased them from (TE Connectivity)
